Smart Thermostat with WiFi App & Voice Control
Smart Thermostat with WiFi App & Voice Control
WiFi and App Control for Remote Access
Knob Temperature Control with Colorful TFT Display
Smart Heat Pump and Multi-Zone Compatibility
In stock
Couldn't load pickup availability
Specifications
Specifications
- Power Supply: AC/DC24V ±10%
- Current Load: 1A (Inductive), 3A (Resistance)
- Sensor: NTC3950, 10K
- Set Temperature Range: 41-95 ℉ (5~35℃)
- Accuracy: 1 ℉ (0.5℃)
- Display Temperature Range: 41-95 ℉ (5~35℃)
- Ambient Temperature: 32-113℉ (0-45℃)
- Ambient Humidity: 5-95%RH (Non-Condensing)
- Storage Temperature: 23-113℉ (-5-45℃)
- Timing Error: <1%
- Power Consumption: <1.5W
- Shell Material: PC+ABS (Fireproof)
- Protection Class: IP20
- Buttons: Capacitive Touch Buttons

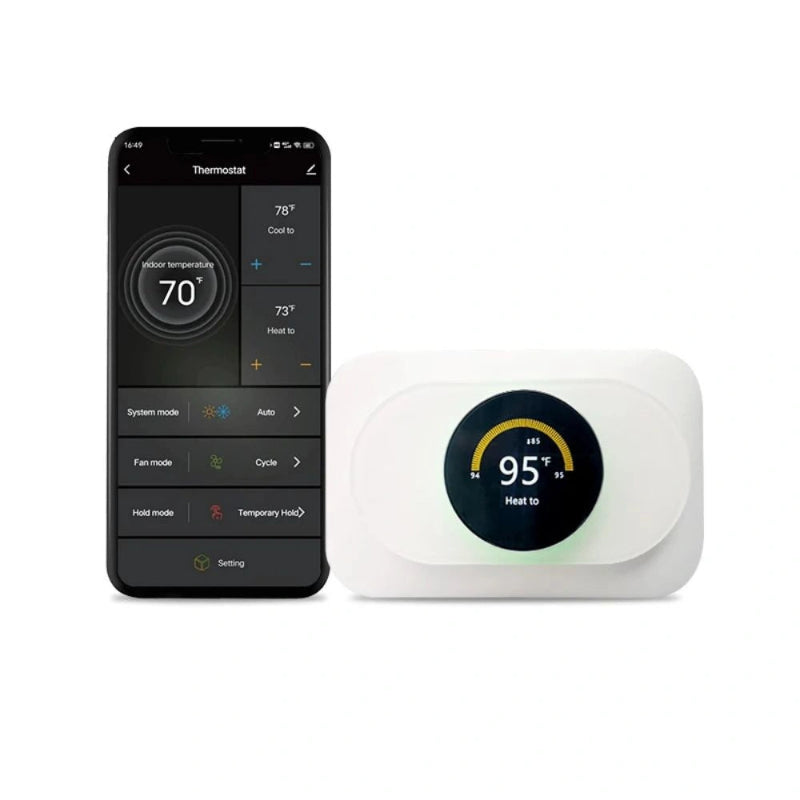

With WiFi & App Control
Control your home's temperature with ease using this smart thermostat and intuitive mobile app.
Key Features and Benefits:
- WiFi Connectivity: Control your thermostat remotely from anywhere.
- App Control: Adjust temperature, set schedules, and monitor energy usage from your smartphone.
- User-Friendly Interface: Easy-to-use touchscreen and intuitive app for simple operation.
- Energy Savings: Optimize energy usage and reduce costs with smart scheduling and remote access.
HEAT PUMP Smart Thermostat
Control your heat pump efficiently with this smart thermostat, featuring a colorful digital display and convenient control options.
Key Features:
- Colorful Digital Display: Large, bright display for clear visibility and easy operation.
- Knob Temperature Control: Adjust the temperature with a simple turn of the knob.
- App Remote Control: Control your thermostat remotely via a smartphone app.
- Voice Control: Compatible with popular voice assistants for hands-free operation.
- TFT LCD Screen: 240*240pt TFT LCD screen for clear and detailed information.
- Black and White Color: Sleek and modern design in black and white color scheme.
- Smart Heat & Cool Zone Control: Efficiently manage different zones in your home.
Colorful Screen Display
Enjoy easy and intuitive control with the colorful screen display, providing clear information and access to various settings.
Display Features:
- Weather: View current weather conditions.
- Indoor/Outdoor Temperature: Monitor both indoor and outdoor temperatures.
- System Status: Check the current operating mode, fan mode, and other system information.
- Week and Time: Keep track of the current day and time.
Menu Options:
- System
- Fan
- Hold
- WiFi
- °C/°F Switch
- Clock
- Child Lock
- Temperature Calibration
- Brightness
- Setting
Local Weather Display
Stay informed about the current weather conditions with the integrated local weather display. The thermostat automatically synchronizes with weather data every hour, so you always have the latest information.
Benefits:
- Conveniently check the weather: No need to open a separate app or look out the window.
- Plan your day accordingly: Dress appropriately and be prepared for any weather changes.
- Automated updates: The thermostat automatically updates the weather information every hour.
Start Your Smart Life
Control and customize your smart thermostat with ease using the Smart Life app.
App Features and Settings:
- Schedule: Create custom schedules for automated temperature control.
- Vacation Settings: Set specific temperatures for when you're away.
- Device Type: Configure the thermostat for your specific heating and cooling system.
- Fan Control: Adjust fan settings and modes.
- Temperature Settings: Fine-tune heating and cooling preferences.
- Compressor Delay: Adjust compressor delay settings for optimal performance.
- Filter Cleaning Reminder: Set reminders for filter cleaning maintenance.
- Factory Reset: Easily restore the thermostat to factory settings.
New Smart Settings Mode
Reduce energy consumption and maintain a comfortable temperature with the new smart settings mode.
Key Features and Benefits:
- Automatic Temperature Control: Maintain a consistent temperature in your home 24/7 without manual switching.
- Energy Efficiency: Reduce energy consumption and save on heating and cooling costs.
- Heat Pump Compatibility: Designed specifically for use with heat pump systems.
- Customizable Temperature Range: Set your desired temperature range for both heating and cooling.

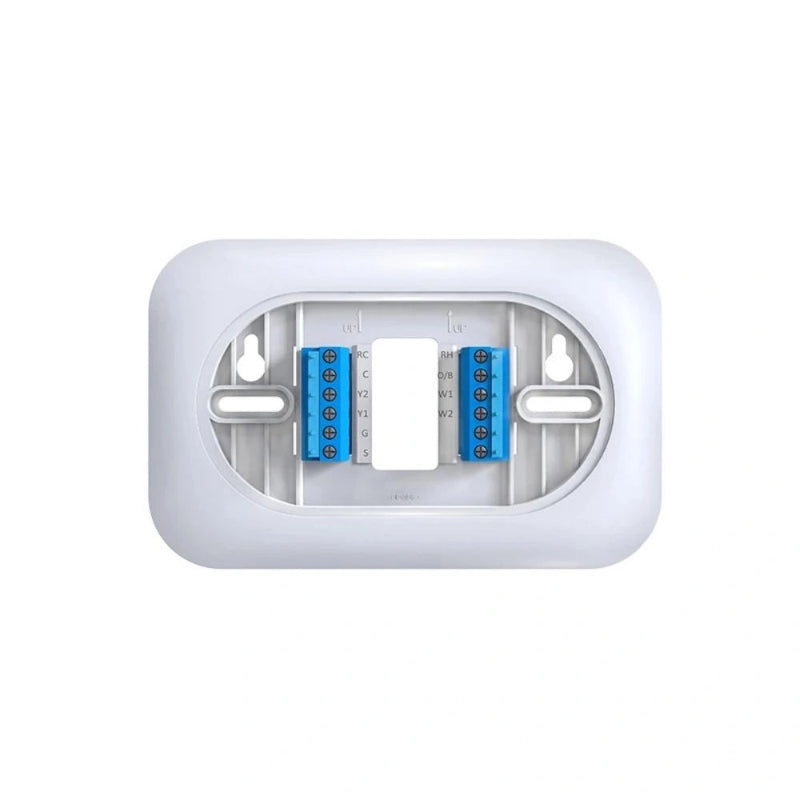

Wiring Terminals
Proper installation is crucial for the safe and efficient operation of your smart thermostat. Refer to the wiring diagram and consult a qualified electrician if needed.
Terminal Designations
Proper installation is crucial for the safe and efficient operation of your smart thermostat. Refer to the terminal designations and consult a qualified electrician if needed.
| Terminals | What it means |
|---|---|
| Rh | 24VAC primary for heating |
| Rc | 24VAC primary for cooling |
| C | 24VAC Common Wire |
| W1 | Heat Relay (Stage 1) |
| W2 | Heat Relay (Stage 2) |
| Y1 | Compress Relay (Stage 1) |
| Y2 | Compress Relay (Stage 2) |
| G | Fan Relay |
| O/B | Heat Pump Changeover Valve |
| S | Optional wiring module terminal to combine Y and G, while reserve an extra in-wall wire to power on the thermostat |
Smart Heat Pump Thermostat
Enhance your comfort and ambiance with this smart thermostat, featuring 8 ambient lights and a colorful TFT screen.
Key Features:
- Ambient Lights: 8 customizable ambient lights to create the perfect mood.
- TFT Color Screen: Vivid and clear display for easy monitoring and control.
- Knob Control: Intuitive knob for precise temperature adjustments.
- Versatile Installation: Compatible with both vertical and horizontal orientations.
Technical Specifications and Dimensions
Ensure proper installation and compatibility by reviewing the dimensions of this smart thermostat.
Dimensions (mm):
- Front: 140.0 ± 0.15 (W) x 112.5 (H)
- Mounting Plate: 84.0 (W) x 90.0 ± 0.15 (H) x 18.0 (D)
- Depth: 35.5 + 29.5 = 65
Smart Thermostat
Colorful Screen Display
Enjoy easy and intuitive control with the colorful screen display, providing clear information and access to various settings.
Display Features:
- Weather: View current weather conditions.
- Indoor/Outdoor Temperature: Monitor both indoor and outdoor temperatures.
- System Status: Check the current operating mode, fan mode, and other system information.
- Week and Time: Keep track of the current day and time.
Menu Options:
- System
- Fan
- Hold
- WiFi
- °C/°F Switch
- Clock
- Child Lock
- Temperature Calibration
- Brightness
- Setting
Diverse Temperature Control
Enjoy convenient and flexible temperature control with multiple interactive methods.
Control Options:
- App Remote Control: Adjust settings and monitor your thermostat remotely from your smartphone.
- Smart Speaker Voice Control: Use voice commands with compatible smart speakers for hands-free operation.
- Sensitive Knob Temperature Control: Easily adjust the temperature with the precise knob control on the device.
HEAT PUMP Smart Thermostat
Control your heat pump efficiently with this smart thermostat, featuring a colorful digital display and convenient control options.
Key Features:
- Colorful Digital Display: Large, bright display for clear visibility and easy operation.
- Knob Temperature Control: Adjust the temperature with a simple turn of the knob.
- App Remote Control: Control your thermostat remotely via a smartphone app.
- Voice Control: Compatible with popular voice assistants for hands-free operation.
- TFT LCD Screen: 240*240pt TFT LCD screen for clear and detailed information.
- Black and White Color: Sleek and modern design in black and white color scheme.
- Smart Heat & Cool Zone Control: Efficiently manage different zones in your home.
24V Smart Heat Pump Thermostat
This smart thermostat is designed with high-quality components for optimal performance and durability.
Key Components:
- Knob: For precise temperature adjustments.
- Acrylic Panel: Provides a sleek and modern look.
- Top Cover: Protects the internal components.
- Circuit Board: The brain of the thermostat, controlling all functions.
- Backplate: Ensures secure and stable mounting.
Frequently Asked Questions
What are the main features of the Smart WiFi Thermostat?
The Smart WiFi Thermostat offers WiFi connectivity for remote access, app control for setting schedules and monitoring energy usage, a colorful digital display, voice control compatibility, and energy-saving features such as smart scheduling and ECO mode.
What heating and cooling systems are compatible with this thermostat?
The thermostat is compatible with heat pump systems, gas or water boilers, electric floor heating, and standard heating and cooling systems. Consult the wiring diagram for specific installation requirements.
How can I control the thermostat remotely?
You can control the thermostat remotely using the Smart Life app on your smartphone. It also supports voice commands with popular smart speakers like Amazon Alexa and Google Assistant.
What information does the colorful screen display provide?
The screen displays indoor and outdoor temperatures, current weather, system status, day and time, and menu options such as fan settings, temperature calibration, and child lock.
What energy-saving features does this thermostat include?
The thermostat offers smart scheduling, ECO mode, and vacation settings to optimize energy usage. It also includes compressor delay settings and filter cleaning reminders to maintain efficiency.
